Garmin GPSMAP8700 Black Box

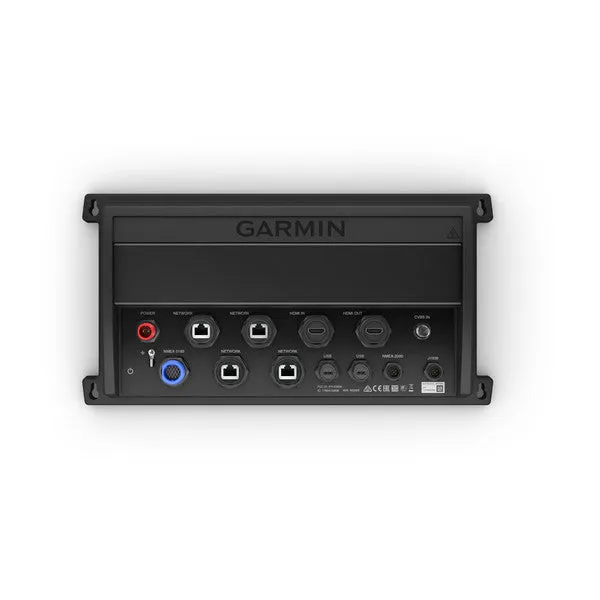

Garmin GPSMAP 8700 Black Box

Model: 010-02094-00

• Compatible with a single Garmin monitor or third-party touchscreen monitor


• Full support for the range of Garmin black box sonar products, including the GSD™ 26 CHIRP Professional Sonar Module, Panoptix™ LiveScope system and the entire Panoptix™ all-seeing sonar line (all transducers sold separately)


• Integrates internal sonar sharing, multiple black box sonars, Ultra High-Definition ClearVü and SideVü scanning sonars, autopilot, connected services, apps, engine data and more


• Pairs with external GPS 19x 10 Hz GPS and GLONASS receiver to update position and heading 10 times per second


• Preloaded worldwide basemap; compatible with BlueChart® g3 charts featuring integrated Navionics® data and Auto Guidance technology

Give your vessel tremendous capabilities and features that are fully integrated across your entire marine system. This black box system is compatible with Garmin marine monitors or third-party touchscreen monitors (sold separately), allowing you to add to your current helm configuration or build a beautiful, new fully integrated glass helm.

The GPSMAP 8700 black box allows you to add and integrate multiple sonar technologies as well as autopilot, connected services, apps, engine data and multimedia at your helm. You can also automatically sync your personal preferences and user data for all networked chartplotters across multiple helms. Everything you need can conveniently be found at your fingertips — on any touchscreen. NMEA 2000® networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — to your touchscreen monitor.

The GPSMAP 8700 black box can pair with our GPS 19x external 10 Hz GPS and GLONASS receiver (sold separately) to update your position and heading 10 times per second. It displays a more fluid vessel movement and dramatically improves your ability to accurately mark and navigate to 5,000 waypoints.

The Garmin Card Reader (sold separately) provides convenient remote mounting and a single access point for 2 SD™ card slots for mapping. You can add multiple card readers for additional access points. A water-resistant magnetic door allows card reader to be mounted horizontally or vertically.

Upgrade your maps with the most detailed, clear and concise charts and maps. Just add accessory map purchases such as BlueChart g3 and BlueChart g3 Vision coastal cartography and LakeVü g3 and LakeVü g3 Ultra inland mapping featuring Navionics data and Auto Guidance technology. Auto Guidance technology uses your specified depth and overhead clearance to easily calculate routes and see a suggested path to follow. It’s also compatible with Quickdraw Contours software so you can instantly create personalized fishing maps on-screen with 1’ contours as you fish.

Specifications

Physical dimensions
14.2" x 7.8" x 6.7" (36.0 x 19.8 x 17.1 cm)

Display size
None

Display resolution
1024 x 768
1280 x 1024
600 x 1200
1680 x 1050
1900 x 1080
1920 x 1080

Display type
None (external display)

Weight
3.06 lbs (1.39 kg)

Water rating
IPX7

J1939 Compatible
Yes

Power consumption
Max power usage at 10 Vdc: 12 W
Typical current draw at 12 Vdc: 0.6 A
Max current draw at 12 Vdc: 1.0 A

Antenna
External only(Sold Separatley

Garmin Marine Network™ ports
4

Maps & Memory

Preloaded maps
Worldwide basemap

Accepts data cards
2 SD™ cards (Garmin Card Reader required)

Waypoints
5,000

Routes
100

Track log
50,000 points; 50 saved tracks

Outdoor Recreation Features

Tide tables
Yes

Chartplotter Features

Garmin Radar compatible
Yes

Garmin Sonar compatible
yes (with GSD™ black box, sold separately)

Garmin SmartMode compatible (customizable monitor presets)
Yes

Supports AIS (tracks target ships position)
Yes

Supports DSC (displays position data from DSC-capable VHF radio)
Yes

Garmin Meteor™ Audio System compatible
Yes

Supports FUSION-Link™ compatible radios
Yes

GSD™ Black Box sonar support
Yes

GCV™ Black Box sonar support
Yes

ActiveCaptain compatible
Yes

Garmin Helm compatible
Yes

GRID™ (Garmin Remote Input Device) compatible
Yes

Sailing Features
Yes

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable
Yes (with external black box, sold separately)

Dual-beam (77/200 kHz) sonar capable
Yes (with external black box, sold separately)

CHIRP sonar technology
Yes (with external black box, sold separately)

ClearVü
yes (with GCV™ black box, sold separately)

SideVü
yes (with GCV™ black box, sold separately)

Connections

NMEA 2000® compatible
Yes

NMEA 0183 input ports
4

NMEA 0183 output ports
2

Video input ports
1 - BNC composite
1 - HDMI

Video output ports
1 - HDMI

Wireless connectivity
Yes

USB
2 micro

What's in the Box:

• GPSMAP 8700 Black Box


• Mounting hardware


• Power cable


• Right angle NMEA 0183 with audio cable


• NMEA 2000® 2 meter drop cable


• NMEA 2000 power cable


• NMEA 2000 T-connectors and terminators


• Documentation
