Smarter Outdoors

PRODUCT HIGHLIGHTS

•  DO NOT SUBMERGE IN WATER:  Keep the plug at least a foot above ground when using it with an extension cord to avoid damage.
• On/off Z-Wave control for 2 independent devices (up to 15 A resistive load total between 2 outlets; no dimming control)

• Great for Holiday lights, small motors under 1/4 hp, and patio lighting
• Weatherproof housing for safe outdoor use (IP65 rated)

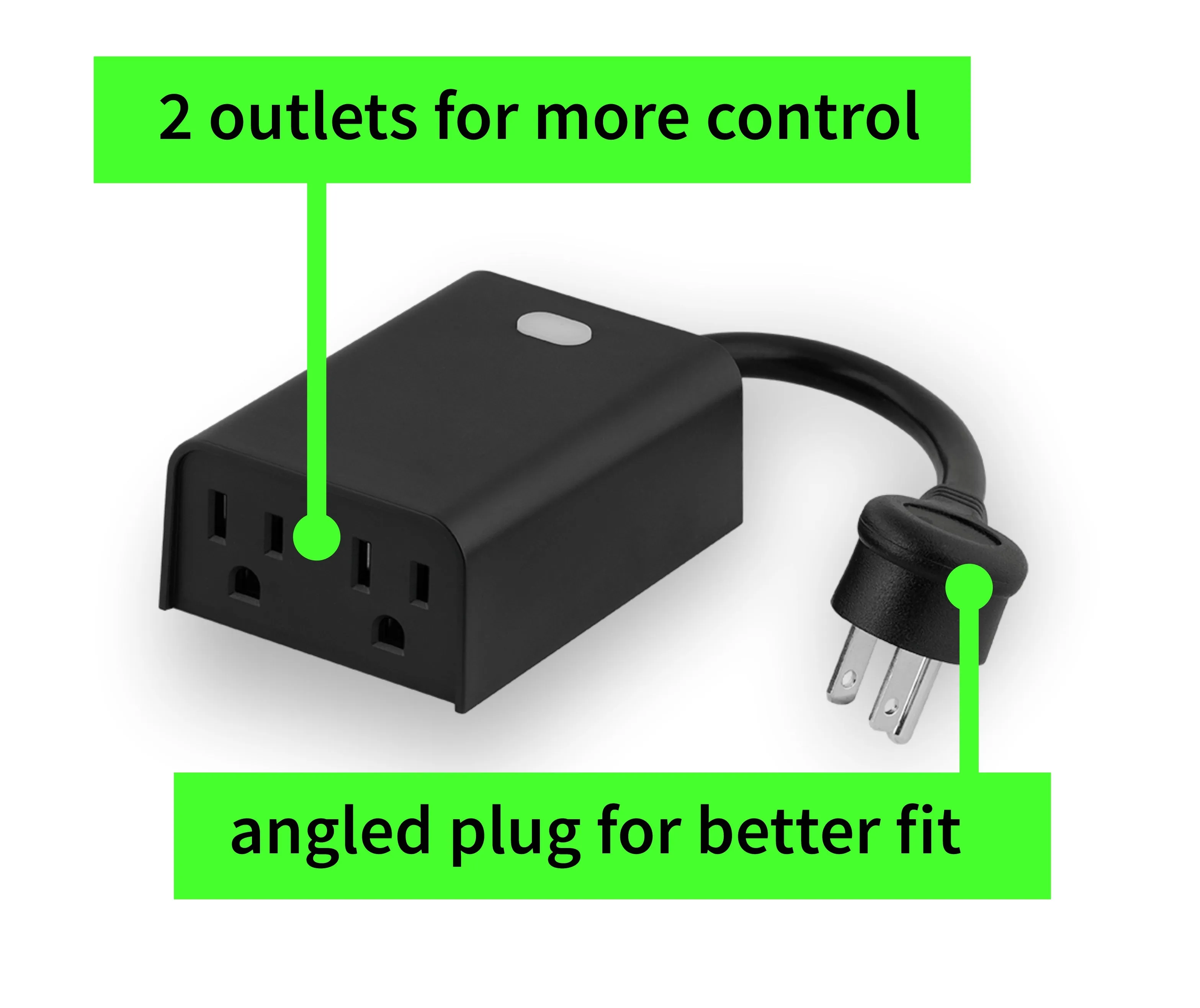

• An angled plug keeps the second outlet in your receptacle clear
• NEW 800 chip: more range, faster signal, SmartStart inclusion S2 security
• Z-Wave Long Range ready: extend the wireless coverage up to 1 mile if your hub supports Long Range
• SmartStart and S2 authenticated security for hacker-proof setup
• Compatible with quality LED and incandescent bulbs (don't connect to fans over 3A or large appliances; NOTE: FEIT bulbs are not recommended)
• Built-in signal repeater: boost your network's speed and range with the 800 series technology

• 5-year warranty (when registered) and lifetime tech support

• Check out

NOTE: Z-Wave gateway controller required - sold separately. *Your smart hub / controller needs to support advanced settings and central scene programming for you to take advantage of this feature.

SPECIFICATIONS

• Z-Wave Region: US
• Power: 120 VAC, 60 Hz
• Maximum Loads: 960W incandescent, 150W LED bulbs, 15A resistive, 1/3 HP fan motors combined between 2 outlets
• Z-Wave Range: Up to 300 feet line of sight (up to 1300 feet with Z-Wave Long Range)

• Dimensions: 5" tall, 3.5" wide, 1.75" deep
• Cord Length: 6.5"
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor or outdoor use, IP65 rated

RESOURCES

WORKS WITH

•  (recommended for Zooz products)
•  (select "Generic Z-Wave device" from the Device Wizard)

•  (select "Generic Z-Wave device" from the Device Wizard)
• Home Assistant (Z-Wave JS)

• HomeSeer (with Z-Wave Plus )

• Homey ()
• Hubitat
• SmartThings ()

NOTE: If you don't see your Z-Wave controller on the list above, please before you purchase this product.

INSTALLATION

Before installing, make sure the load does not exceed 960W for incandescent lights, 150W for LED's, 3A for fans and motors, or 15 A for resistive load COMBINED between the 2 outlets.

How to include the Outdoor Double Plug to your smart home network?
1. Insert the plug into a standard 120 V receptacle
2. Put your Z-Wave controller in inclusion/pairing mode
3. Click the Z-Wave button on the plug 3 times quickly to finalize the inclusion process
4. A new on/off device will appear on your hub's device list
